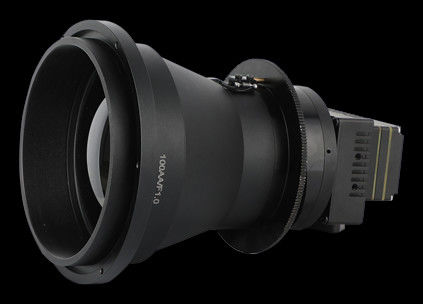

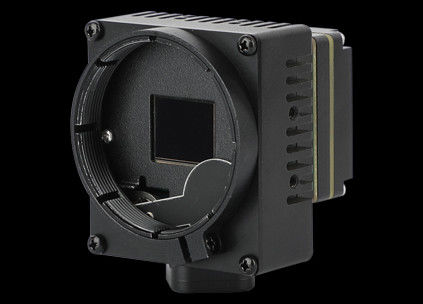

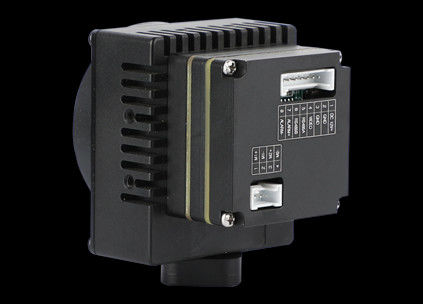

냉각된 Lynred 발견자 열 화상 진찰 사진기 체계
주요 특성
브랜드 이름:
thundsea
원산지:
중국
인증:
CCS
최소 주문 수량:
1 세트
공급능력:
달 당 30 세트
배달 시간:
15 일
지불 조건:
L/C, T/T
표준 포장:
판지 상자
제품 요약
640*512 매체 파는 린레드 검출기와 열 코어를 냉각시켰습니다 640 냉각된 열 코어
제품 맞춤 속성
강조하다
640*512 열 화상 진찰 감시 사진기
,냉각된 휴대용 열 화상 진찰 사진기
,Lynred 발견자 열 사진기 감시
발견자:
MCT640×512
괴기한 범위:
3.7~4.8μm
화소 피치:
15μm
냉각 방법:
스털링 냉장고
NETD:
≤ 25mk@25 ℃
냉각 시간:
정상적인 온도에 있는 ≤8 분
디지털 방식으로 영상:
LVDS
구조 빈도:
25Hz
제품 설명
640*512 매체 파는 린레드 검출기와 열 코어를 냉각시켰습니다
640 냉각된 열 코어
관련 제품
35-700mm F4 연속적인 줌 LEO 검출기 열사진법 카메라 시스템
35-700mm F4 Continuous Zoom LEO Detector Thermal Imaging Camera System 35-700mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 35mm ～ 700mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance. Figure1 Thermal imaging
150-1500mm F5.5 MWIR 연속적인 줌 LEO 검출기 열사진법 카메라 시스템
150-1500mm F5.5 MWIR Continuous Zoom LEO Detector Thermal Imaging Camera System 150-1500mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 150mm ～ 1500mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance. Figure1
110-1100mm F5.5 MWIR 연속적인 줌 LEO 검출기 열사진법 카메라 시스템
110-1100mm F5.5 MWIR Continuous Zoom LEO Detector Thermal Imaging Camera System 110-1100mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 110mm ～ 1100mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance. Figure1
86-860mm F5.5 연속적인 줌 MWIR LEO 검출기 열사진법 카메라 시스템
86-860mm F5.5 Continuous Zoom MWIR LEO Detector Thermal Imaging Camera System 86-860mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 86mm ～ 860mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance. Figure1 Thermal
70-700mm 연속적인 줌 LEO 검출기 열사진법 카메라 시스템
70-700mm Continuous Zoom LEO Detector Thermal Imaging Camera System 70-700mm Thermal Imaging System is an advanced MWIR cooled thermal imager used for long-distance detection. The highly sensitive MWIR cooled core with 640x512 resolution can produce very clear image with very high resolution; the 70mm ～ 700mm continuous zoom infrared lens used in the product can effectively distinguish targets such as people, vehicles and ships in long distance. Figure1 Thermal imaging image
그곳의 CCS JIR-2125 30/150/500 밀리미터 줌은 비용 효율적인 MWIR 열영상 형성기를 냉각시켰습니다
CCS JIR-2125 30/150/500mm There Zoom Cooled MWIR Thermal Imager cost-effective Applications Surveillance; port monitoring; border patrol; aviation remote sense imaging. Can be integrated to various type of optronic systems Functional characteristics 1.Long detection distanc 2.Multiple controls: auto/manual contrast, brightness; electronic zooming; auto/manual NUC; defective pixels processing; image positive/negative display weak target enhancement; backlight compensation;
CCS JIR-21XX 냉각식 MWIR 열화상 카메라 진동 방지 충격 비용 효율적인
CCS JIR-21XX Cooled MWIR Thermal Imager anti-vibration anti-shock cost-effective Applications Surveillance; port monitoring; border patrol; aviation remote sense imaging. Can be integrated to various type of optronic systems Functional characteristics 1.Long detection distanc: >10km on classical hot objects 2.Multiple controls: auto/manual contrast, brightness; electronic zooming; auto/manual NUC; defective pixels processing; image positive/negative display weak target
쌍안경을 상상하는 처리된 퓨젼의 기술적 요구
Technical Specifications of Handled Fusion imaging Binoculars 1.Uses Handled fusion imaging binoculars combine the technology of infrared and solid low-light-level imaging, with the function of localization,it can be used for battle field reconnaissance and observation, also the binoculars are widely used in the fields of public safety, security, defending, maritime affairs, fire protection, border defense and so on. 2.Technical Specification Infrared Detector and Lens
